有載調容調壓分接開關
有載調容調壓分接開關
On-load tap-changer for capacity and voltage regulation
本開關適用于交流10kV、50Hz 或60Hz，最大額定容量為1 60(50)kVA至630(200) kVA的三相油浸式有載調容調壓配電變壓器( 以下簡稱調容調壓變)?？稍谡{(diào)容調壓變帶負荷情況下，根據開關控制器( 開關自帶)發出的信號分別進行自動調容或調壓切換，從而達到調節調容調壓變?nèi)萘颗c輸出電壓，提高供電質量，降低調容調壓變損耗的效果。
The switch is applicable to three-phase oil-immersed on-load capacity and voltage regulation distribution transformer (hereinafter referred to as capacity and voltage regulation transformer) with AC 10kV, 50Hz or 60Hz and maximum rated capacity of 160 (50) KVA to 630 (200) kVA. Under the condition that the capacity and voltage regulation transformer is on-load, the automatic capacity regulate or voltage regulation switching can be carried out respectively according to the signals sent by the switch controller (with the switch itself), SO as to adjust the capacity and output voltage of the capacity and voltage regulation transformer, to improve the power quality and reduce the loss of the capacity and voltage regulation transformer.

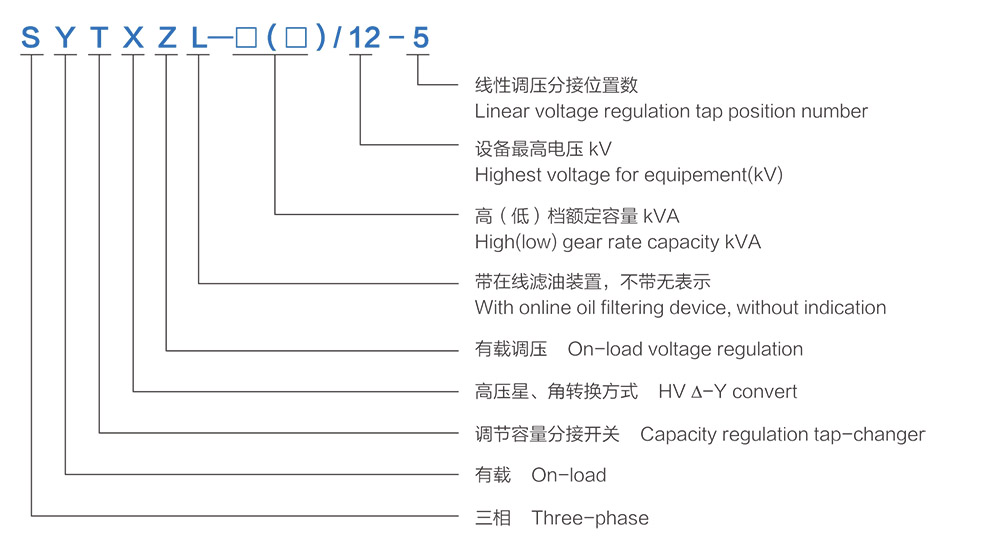

開關型號含義
Type of on-load tap-changer
開關基本性能參數
Basic performance parameters of tap-changer
1.設備最高電壓: 12kV Highest voltage of the device:1 2kV
2.通過最大額定電流: SYTXZ315(100)/12, 高壓30A、低壓500A SYTXZ630(200)/12，高壓30A、低壓900A
Max rate through current: SYTXZ315(100)/12,HV 30A、LV500A SYTXZ630(200)/12，HV 30A、LV900A
3.調容方式:高壓(星、角轉換)，低壓(串并聯) Capacity regulation method:HV(A-Y),LV(series- parallel connection)
4.開關最大“級”電壓:調容6000V,調壓300V Max step voltage:capacity regulation 6000V,voltage regulation 300V
5.調壓最大分接位置數: 5位置 Number of max voltage regulation operation position:5 position

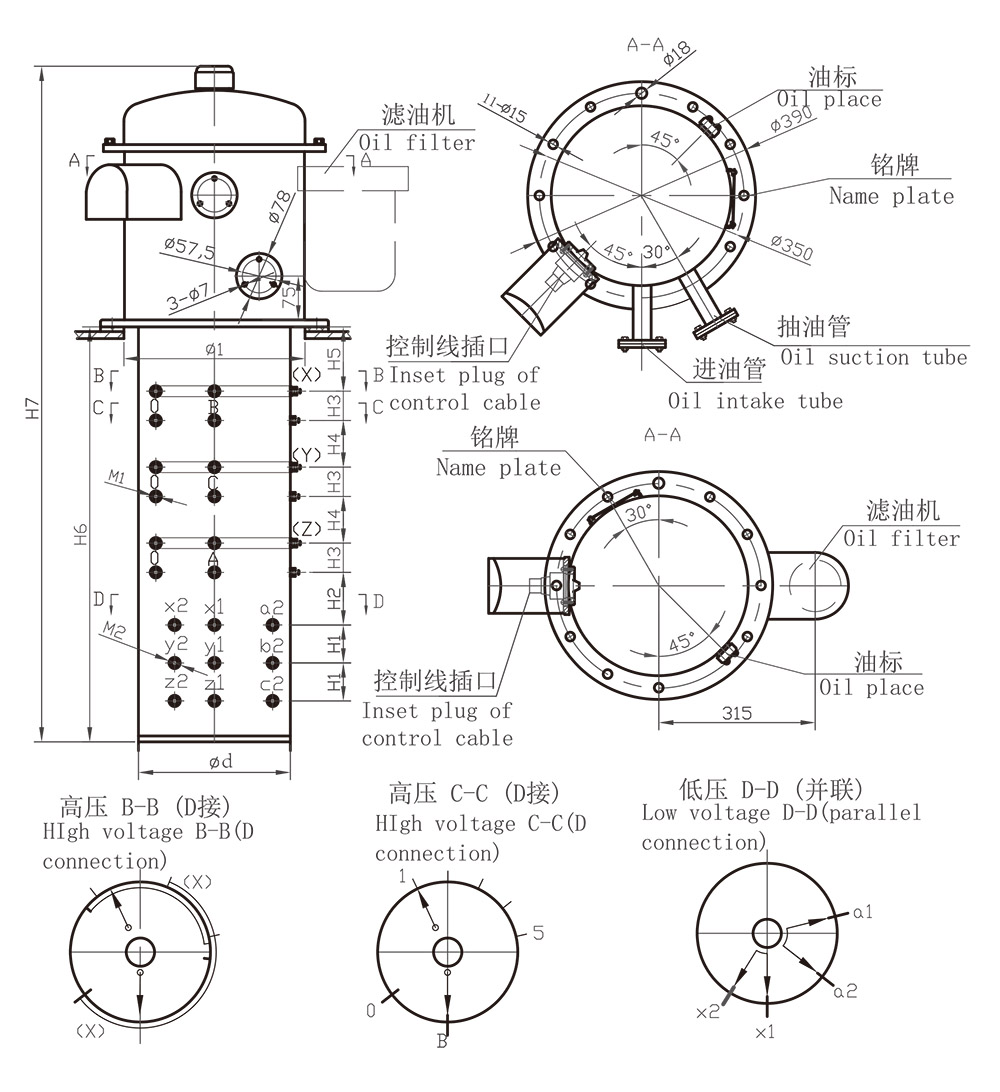

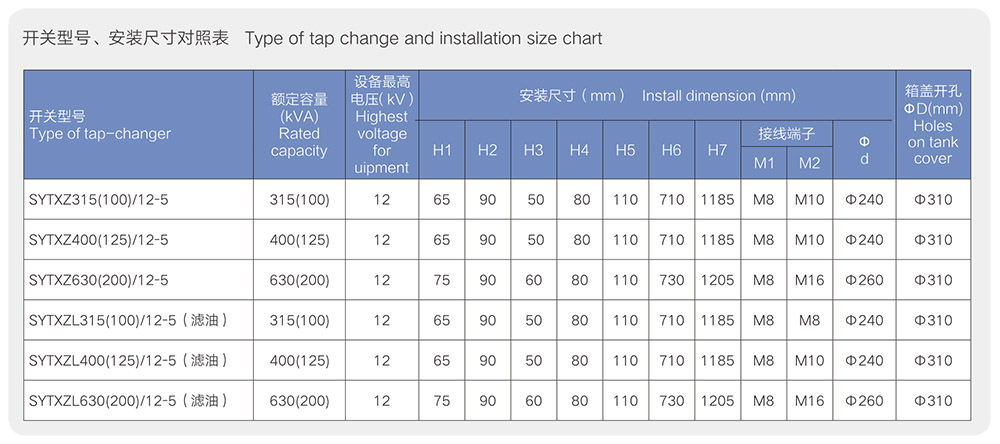

開關外形和安裝尺寸
Overall and installation dimension

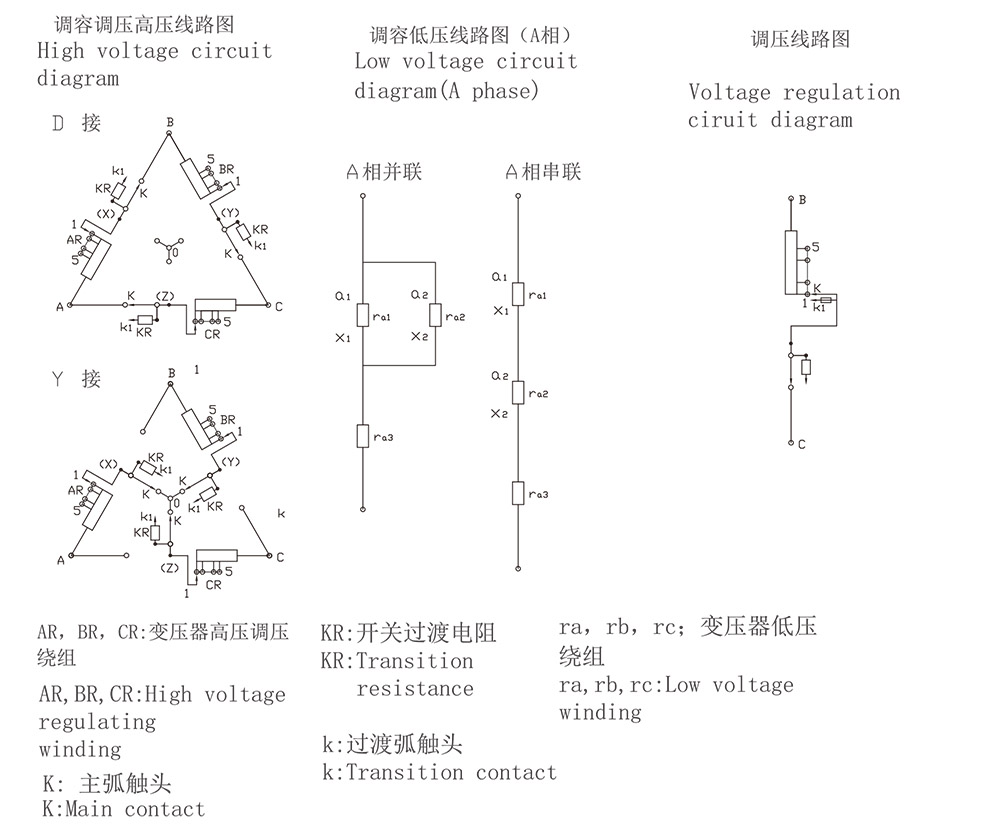

開關接線原理圖
wiring diagram
